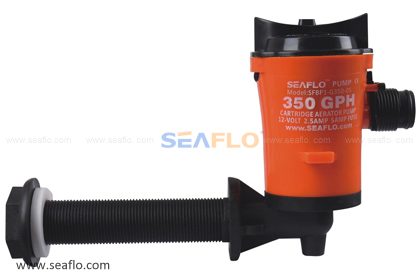

Livewell – Bait Tank Pump

Features & Benefits
Built-in dual port option
Water cooled housing
Positive snap motors
Cartridge locking mechanism
Size: 350 gph in 12 volt version
Easy clean snap-lock strainer bases
3/4″ thread allows for multiple connection options
Extended long nozzle to accept 3 hose clamps
90 degree threaded 3/4″ hose-to-barb connector
Straight threaded 3/4″ hose-to-barb connector

Typical Applications
Marine
RV & Campers
Industrial

PUMP
Liquid Temperature
110°F (43°C) Max.
Priming Capabilities
Not needed flooded suction
Power
3.5 amps max current draw
Max Pressure
Not needed

MOTOR
Type
Compact, efficient, long life motor
Leads
18 AWG, 1 m long Leads
Temperature Limits
110°F (43°C) Max.
Duty Cycle
Intermittent
Voltage
12v
